ACMA E200 Power Harrow,
Double Seed Box Seeder
& XW Packer Roller
6'-6" Working Width, 10" Depth
40-100PTO HP CAT 1 & 2 Tractors
Quick Hitch Compatible

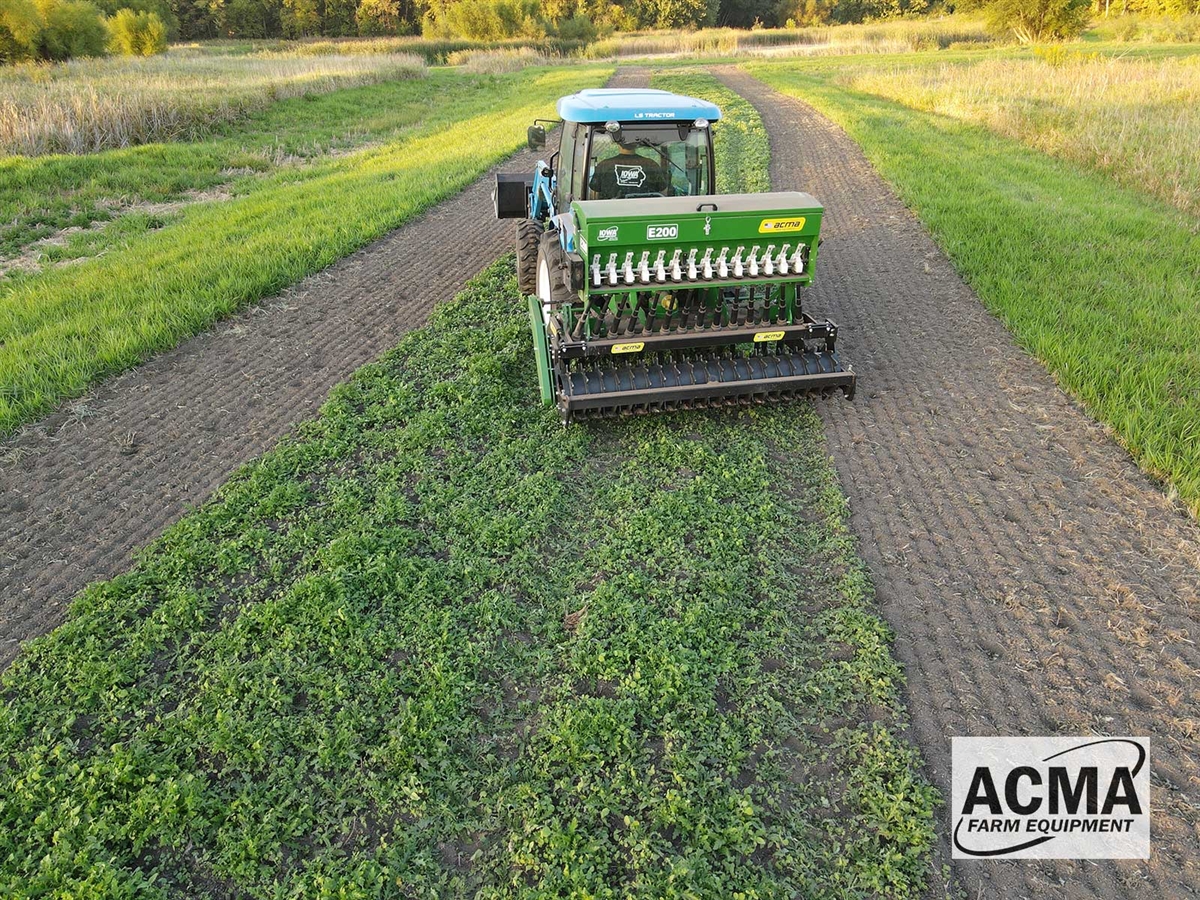

ACMA E200 Power Harrow and Seeder



Availability:: Usually Ships in 2 to 4 Weeks
Product Code: E200S


GENERAL FEATURES: SPECIFICATIONS:


POWER HARROW:
  • ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
  • Quick Hitch Compatible!
  • Heavy Duty Side Plates:
    • Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
    • Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
  • 'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
    • XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
    • Packer Roller Also Provides Soil Conditioning.
  • Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
  • Easy Top Access Rotor Hubs.
  • 2 Blades Per (Round) Blade Carrier.
  • Heavy Duty Clevis Style Pull Arm Hitches.
  • Power Harrow Ships Complete Including a 540RPM, Shear Bolt Protected PTO Shaft!

SEEDER:
  • 7.2Bu Hopper.
  • Dual Hopper Seed Box Eliminates the need for a Second Pass When Planting Various Seed Sizes with Differing Flow Rates, Providing More Unparalleled Efficiency!
    • Suitable For All Grass Seeds, From Alfalfa to Corn & Beans!
    • Built in Agitator Prevents Bridging, Ensures Consistent Flow Rates of Seeds, and Provides Some Blending of Mixed Seed Types.
      • For Warm Season Grass Seeds, use at Least a 50% mix of Kitty Liter, Oil Absorb or an equivalent Product with Large & Weighty Granules to Ensure a Consistent Flow Rate of Warm Season Seeds and to Prevent Bridging.
    • 28 Hopper Openings (14 from each box) Flow Thru a 4-Position Slide Gate For Each Opening, Then Into 28 (White Plastic) Wye Shaped Seed Hoppers for Seed Selection. These Seed Hoppers Are Individually Adjustable For Seed Size. Slide Gates & Seed Size Selector Adjustments Are Both Tool Free - See Photos!
      • After These Individual Hopper 'Port Openings' & Individual Seed Hoppers w/'Seed Selectors' Have Moved & Sorted the Seeds, Seeds Will Flow Down the Drop Tubes (Secured to a Rigid 80" Channel) For Placement Onto the Beautiful Seedbed Made By the Power Harrow. Then the Hydraulically Controlled Packer Roller Follows to Ensure Excellent Ground Contact For Maximum Germination! All This In One Efficient & Timely Pass!
    • Handle at End of Each Seed Hopper for Opening & Closing Seed Flow (On/Off) at the Bottom of Each Individual Seed Hopper:
      • Handles Are At Opposite Ends; Right Side for Rear Box, Left Side For Front Box.
      • Handles For Speed Control For Seeding Rate Are Also on Opposite Ends for Each Box.
    • Mechanical Seed Level Indicators Are Adjustable and Visible To Tractor Operator.
