ACMA DB180E
Ditch Bank Flail Mower:

71" Cut, Hydraulic Offset & Tilt
50-75HP CAT 1 & 2 Tractors

Acma DB180E Ditch Bank Flail Mower

Alternative Views:




Availability:: Usually Ships in 2 to 4 Weeks
Product Code: DB180E


GENERAL FEATURES: SPECIFICATIONS:

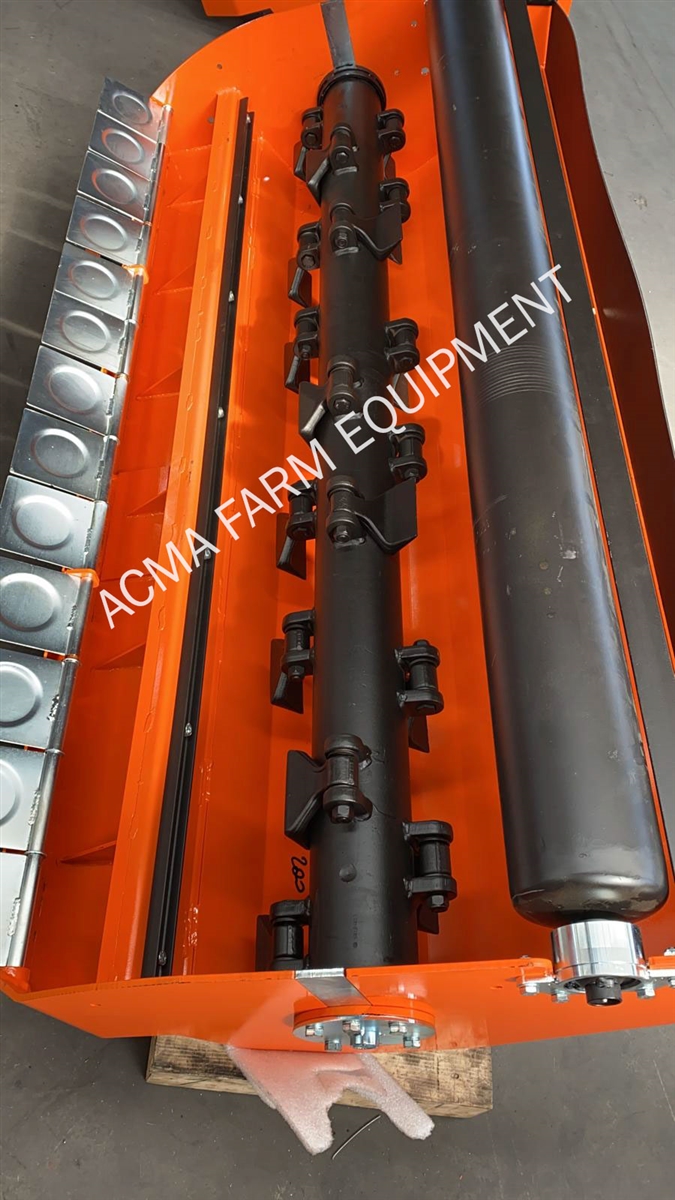

  • This ACMA Flail Mower Has 28 Very Large Solid Cast Steel Hammer Blades- ACMA Flail Mowers Always Have the Highest Population of Blades To Provide The Best Possible Cut & Reduce The Burden on Your Tractor!
  • ACMA Mower Gearboxes Include An Over-Running Clutch, Which Provides Two Advantages:
    • First, Easy Alignment & Attachment Of The Mowers PTO Shaft To The Tractors PTO Shaft:
      • The O.R. Clutch Enables You To Freely Spin The PTO Shaft & Gearbox For Alignment!
    • Second, Smooth Shut Down:
      • The O.R. Clutch Allows The Mower Gearbox To Free Wheel To A Stop, Eliminating Abrupt Shutdowns & Premature Wear Of The PTO Brake!
  • Rear Roller Provides Mower Deck Suspension & Cutting Height Adjustment (1/2"-5").
  • 'Under Deck Mulching Grating' Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
    • Under Deck Grating Is Integrated With The Protective (Internal) Double Skin.

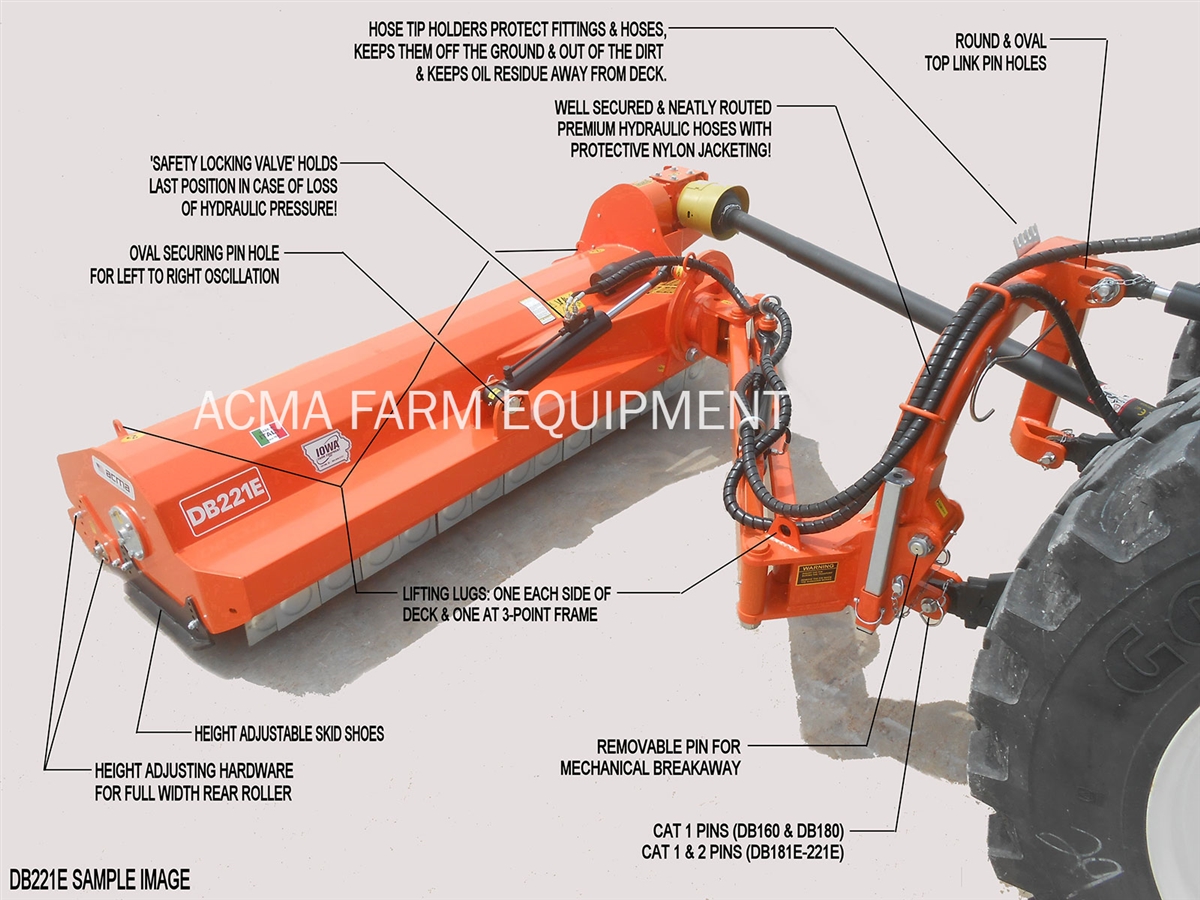

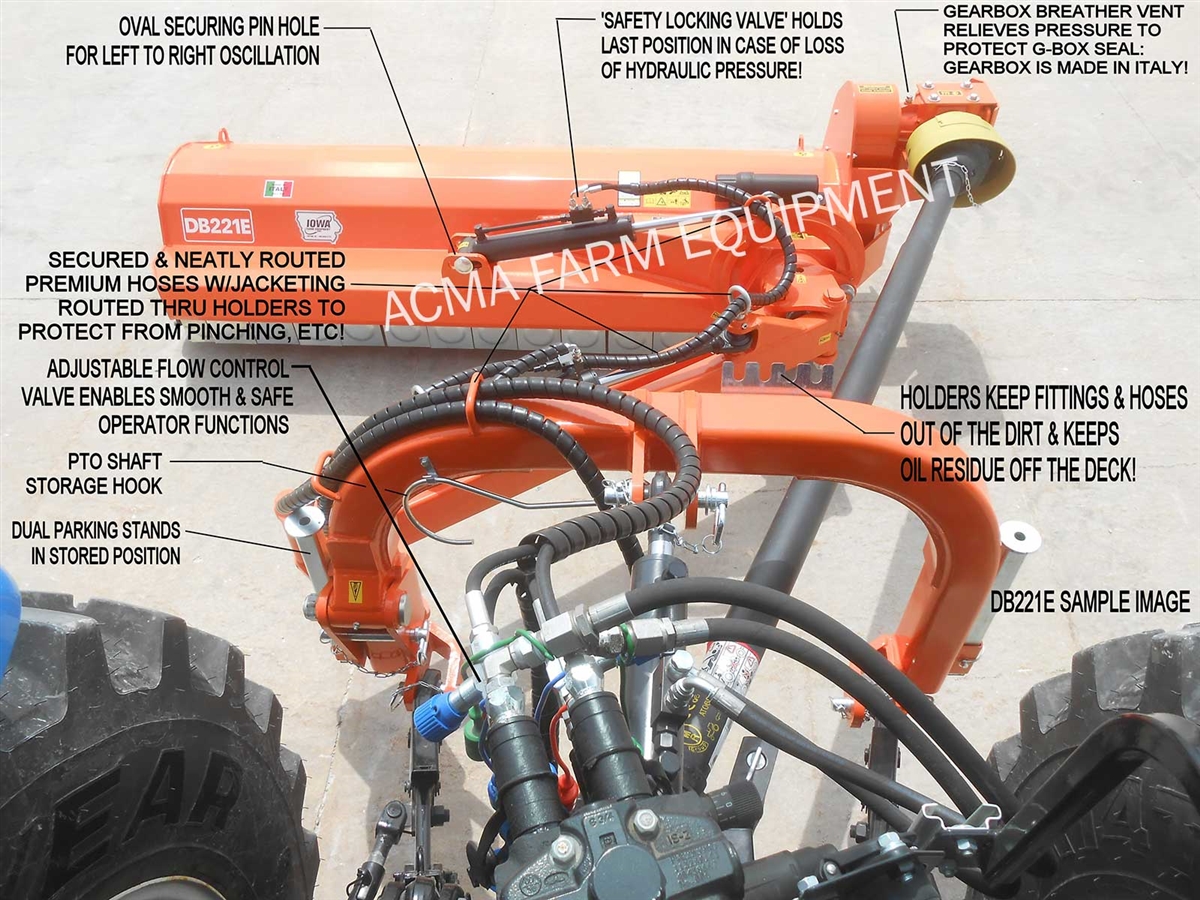

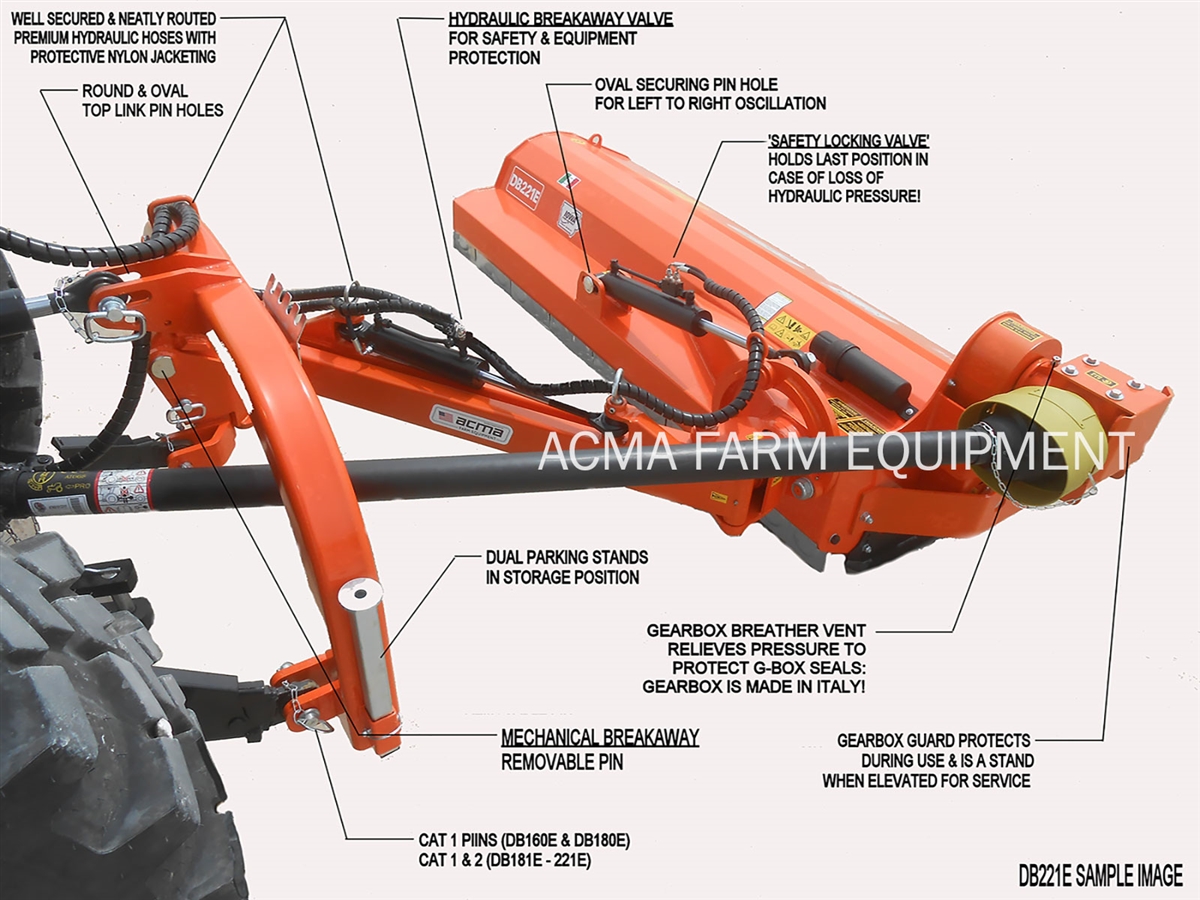

  • Offset & Head Positioning Functions Operate Hydraulically.
  • With The External Gearbox & Unique Hitch Configuration of ACMA Mowers, Expect to Get the Most Right Side Reach Possible!
  • Multiple Advantages Of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
    • If You're Mowing Along Fencelines, Treelines, Building, Etc., Instead Of Getting Your Entire Tractor Along Side Of The Fence Or Building (and risk scraping your Tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), You Can Simply Keep The Offset Part Of The Mower Close To The Edges You Want To Mow And Prevent Damage To The Tractor Or Trees, Fencing, Walls, Etc. Snagging Posts, Trees Or Other Secured Objects Can Also Damage The 3-Point Linkage On The Mower Or Even The Pull Arms & Top Link Of Your Tractor.
    • Much, Much Better Visibility: If The Edge Of Any Mower Is Flush With The Sidewall Of Your Tractors Tire, Forget About Visibility! You Will Be Cutting With Your Tractor Tire As A 'Guide', Which is OK In Open Areas, But Again, When You Are Mowing Up Against Obstacles, You Want Visibility, And The Offset Feature Will Provide That. It Will Also Eliminate The Need To Look Back Over Your Shoulder To See The Mower Deck. A Simple Glance To Your Right Gives You Visibility Of The Outer Mowing Edge.
  • ACMA Flail Mowers Provide A Much Better Cut Than Standard Rotary Mowers, Plus With The 'Solid Cast Hammer' Blades On This Flail Mower, You Can Cut 3" Diameter Material & Get A Very Good Finish Cut Too!
  • ACMA Flail Mowers Are The Safest & Most Efficient Mowers Available:
    • With ACMA Flail Mowers, The Possibility Of Discharging Dangerous Projectiles Is Dramatically Reduced Compared To Conventional Rotary Mowers, And With The Reduced Deck Depth & Weight, They're The Easiest For You & Your Tractor To Handle! Plus, The Superior 'Single-Pass' Cut Of ACMA Flail Mowers Provides New Efficiencies By Eliminating Multiple Passes For Excellent Results!
  • Mower Ships Fully Assembled & Ready To Use! This Means No Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knucklebusters & No Waiting Until It's Assembled Before First Use!
  • ACMA Products Are Made In Italy & Assembled In The USA!
  • Tractor Images Shown In Photos For Reference Only - Tractor Is Not Included.

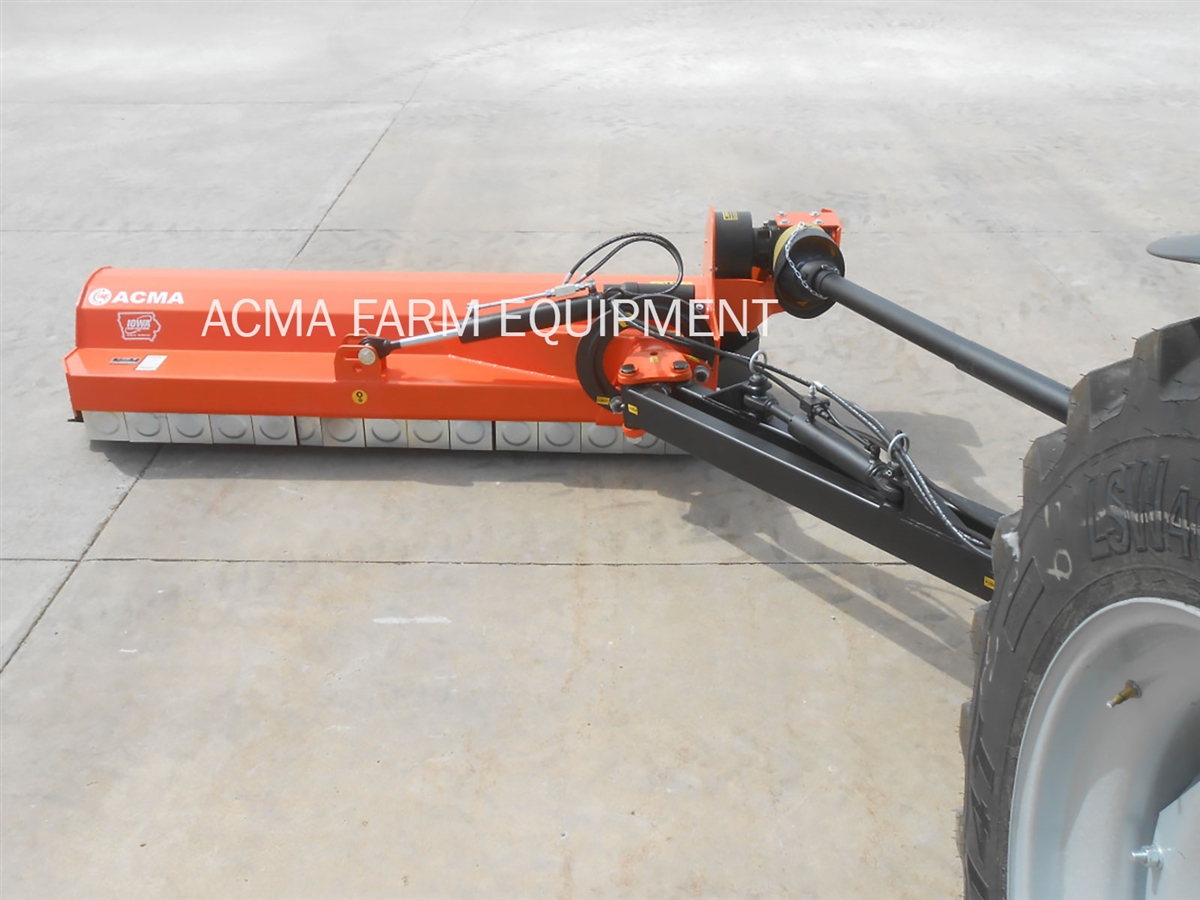

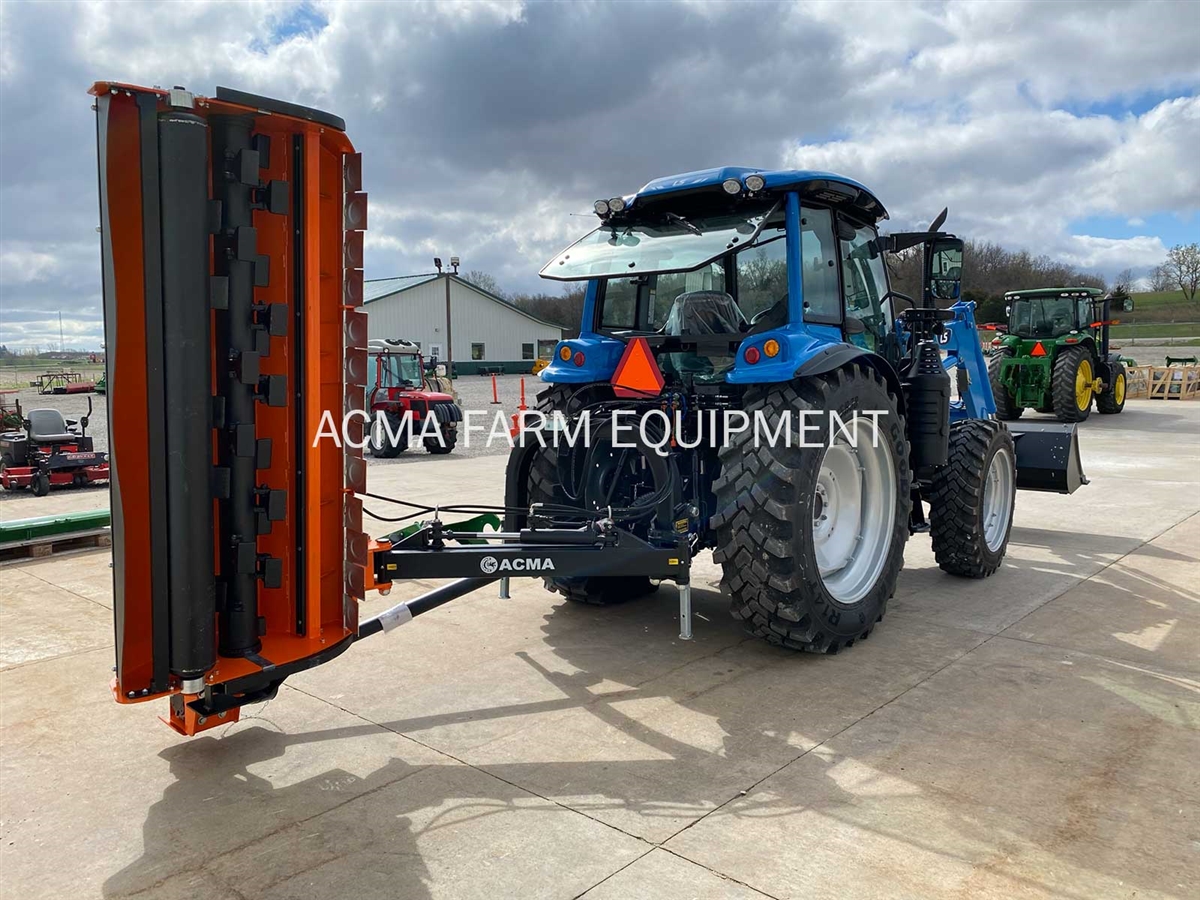

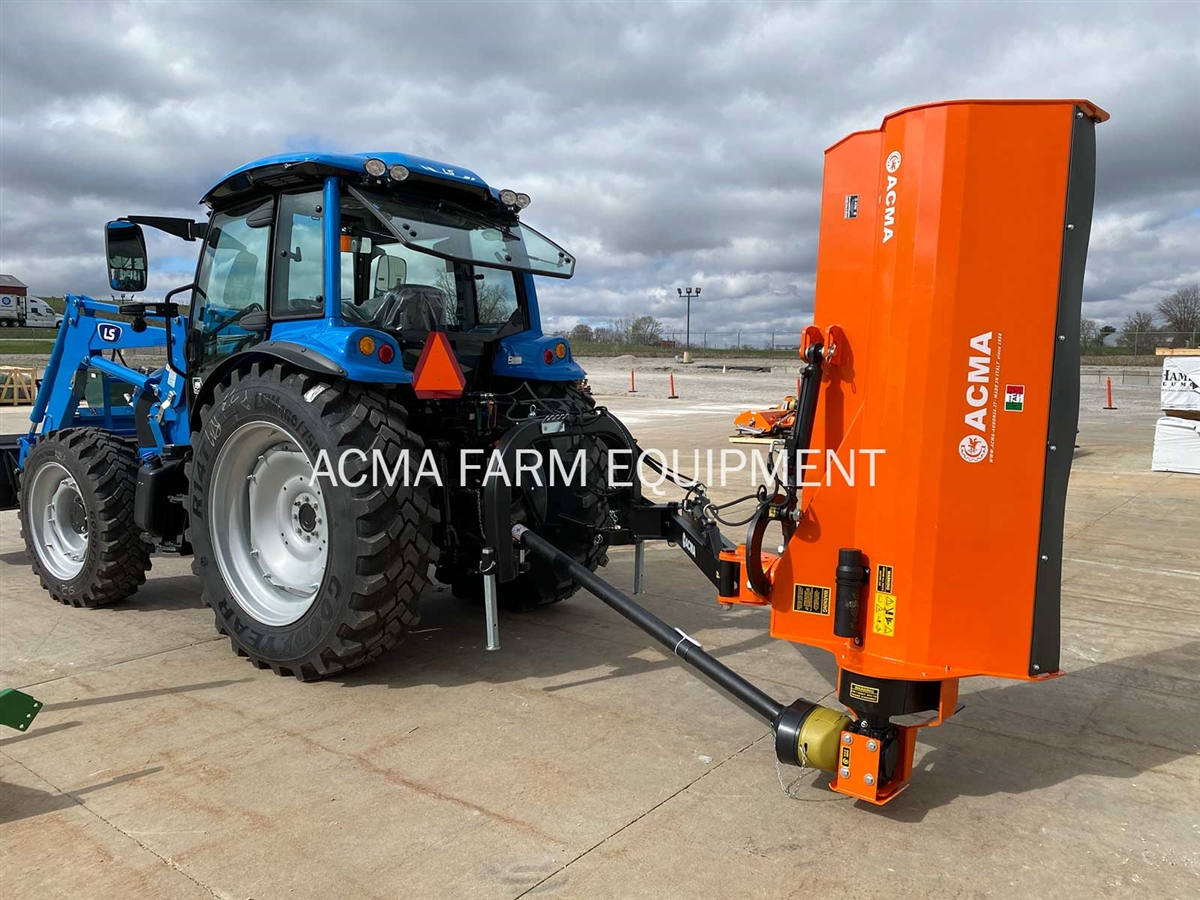

  • Sample Photos Show a Larger 201E Model, But this Listing is For The 180E Model.
  • Sample Video Shows a Smaller 160E Model and a Larger 221E Model, But this Listing is For The 180E Model as Stated.
  • Made In Italy & Assembled In USA:
    • (No Chinese Gearbox, NO Chinese Components):
  • Mower Ships Assembled & Ready To Use!
  • Mower Ships with 540RPM PTO Shaft!
